Proximity Sensors - Industrial
Carlo GavazziEC3025TBAPL

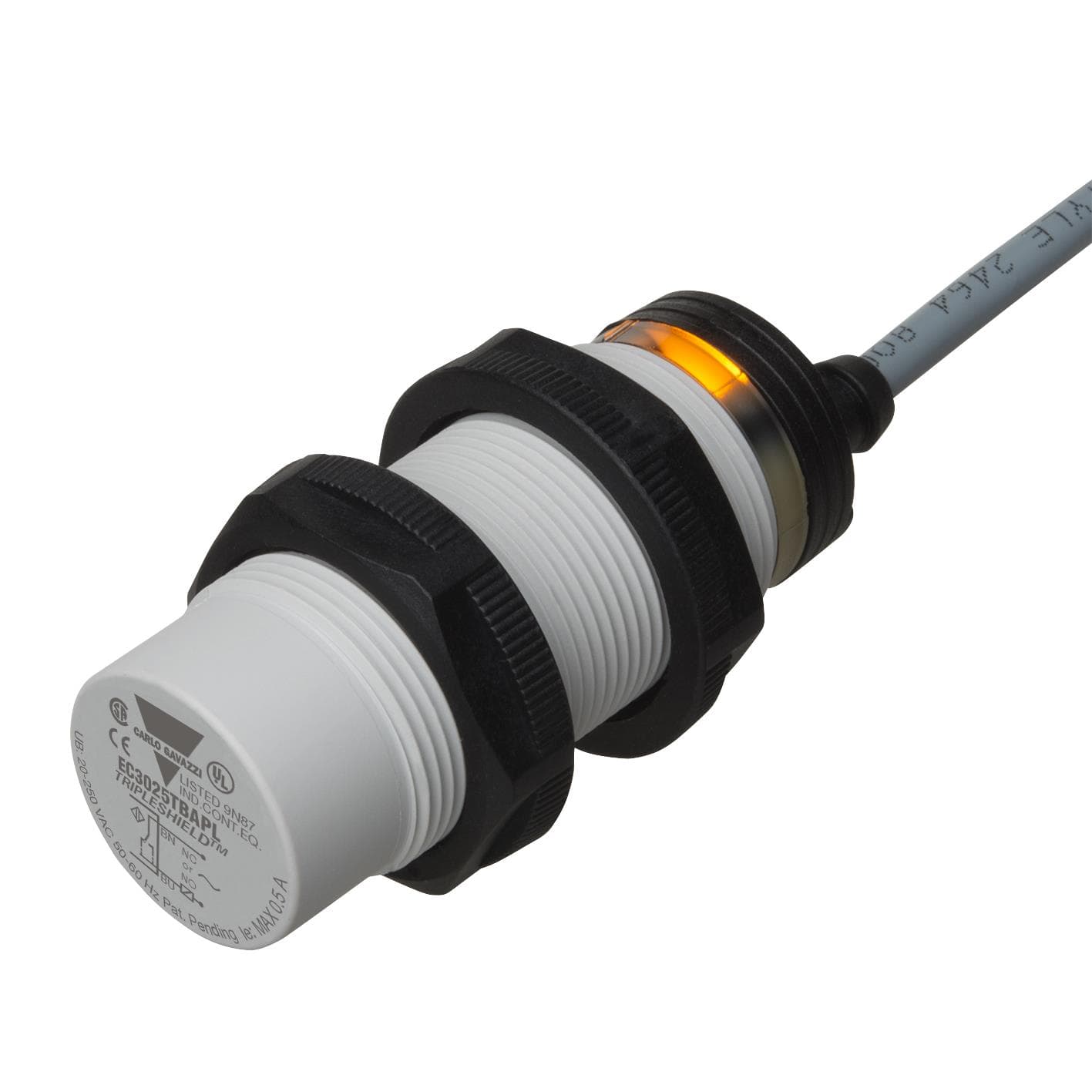

Carlo Gavazzi EC3025TBAPL is a capacitive sensor. Specifications include a sensing range of 25 mm, SCR-NC/NO, 2-Wire output, IP67 protection, 20V AC ~ 250V AC supply, M30, Rated housing, and an operating temperature of -25°C to 80°C.
Engineering Specifications
9 of 13 fields available · 69%Verified from distributor listing3 of 9 verified specifications with source evidence
Sensor TypeCapacitive
Sensing MethodNot specified
Sensing Distance25.0 mm
Output TypeSCR-NC/NO, 2-Wire
Supply Voltage20V AC ~ 250V AC
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialRatedVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 80°CVerified · Medium · Page 1
Manufacturer datasheetMediumPage 1
Evidence: labeled single value with explicit temp unit
Excerpt: “+80°C”
Extracted Sep 7, 2026View source
Switching Frequency10 Hz
Response TimeNot specified
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$383.005 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
