Proximity Sensors - Industrial
CrouzetIMB1805T

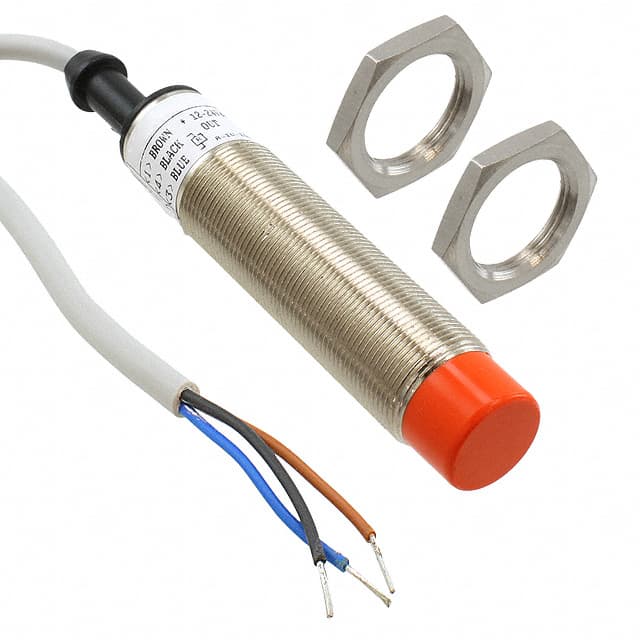

Crouzet IMB1805T is an inductive sensor. Specifications include a sensing range of 5 mm, PNP-NO, 3-Wire output, 12-24V supply, M18, Stainless Steel housing, and an operating temperature of 0°C to 60°C.
Engineering Specifications
8 of 13 fields available · 62%Verified specifications5 of 8 verified specifications with source evidence
Verification date not recordedView source document
Verified specifications
Sensor TypeInductiveVerified · High · Page 2
Sensing Distance5.0 mm
Output TypePNP-NO, 3-Wire
Supply Voltage12-24VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 6, 2026View source
Housing MaterialStainless SteelVerified · High · Page 2
Housing TypeM18
Operating Temperature0°C to 60°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “0 to 60°C”
Extracted Sep 6, 2026View source
Switching Frequency10.0 kHzVerified · High · Page 2
Additional specifications not yet verified (5)Show
- Sensing MethodNot specified
- IP RatingNot specified
- Response TimeNot specified
- Current ConsumptionNot specified
- AccuracyNot specified
These fields have not yet been verified and do not indicate a defect.
These fields are pending verification and remain discoverable for completeness.
