Omron Automation and SafetyE2B-M12KN08-M1-C1

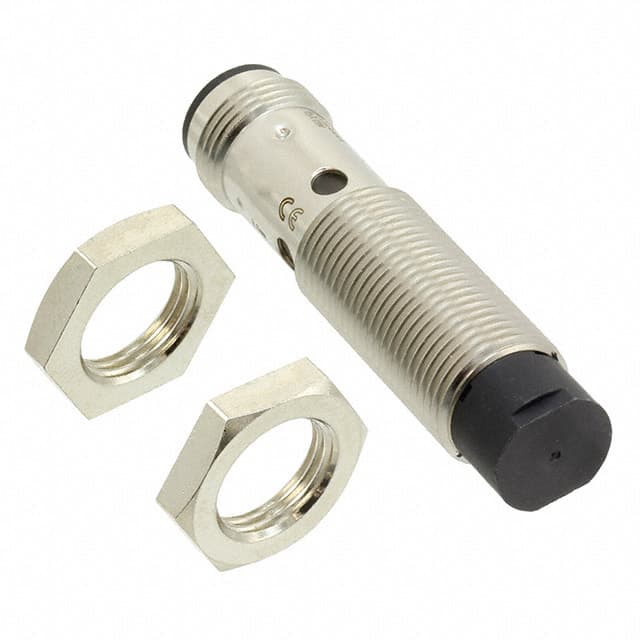

Omron Automation and Safety E2B-M12KN08-M1-C1 is an inductive sensor. Specifications include a sensing range of 8 mm (range 0–1.2 mm), IP67/IP69K protection, 10-30V supply, M12, 1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS). housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications4 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductive
Sensing MethodNot specified
Sensing Distance8.0 mm (range 0.0–1.2 mm)
Output TypeNot specified
Supply Voltage10-30VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “10 to 30 VDC”
Extracted Sep 6, 2026View source
IP RatingIP67, IP69KVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 6, 2026View source
Housing Material1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).Verified · High · Page 2
Manufacturer datasheetHighPage 2
Excerpt: “1.4305 (W.-No.), SUS 303 (AISI), 2346 (SS).”
Extracted Sep 6, 2026View source
Housing TypeM12
Operating Temperature-25°C to 70°C
Switching Frequency800 Hz
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 2
AccuracyNot specified
