Omron Automation and SafetyE2E-X2D1-N

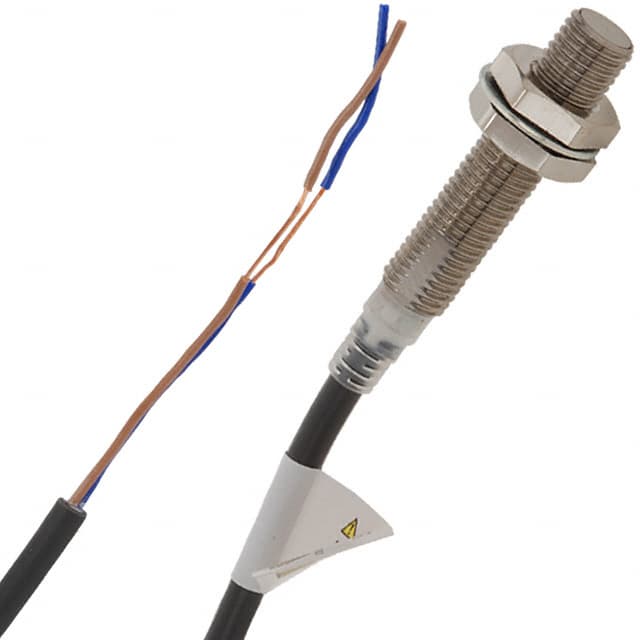

Omron Automation and Safety E2E-X2D1-N is an inductive sensor. Specifications include a sensing range of 2 mm, NPN-NO, 2-Wire output, IP67 protection, 12-24V supply, M8, Stainless Steel housing, and an operating temperature of -40°C to 85°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications4 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductive
Sensing MethodNot specified
Sensing Distance2.0 mm
Output TypeNPN-NO, 2-Wire
Supply Voltage12-24VVerified · High · Page 19
Manufacturer datasheetHighPage 19
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 16
Manufacturer datasheetHighPage 16
Evidence: labeled compliance context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialStainless Steel
Housing TypeM8
Operating Temperature-40°C to 85°CVerified · High · Page 19
Manufacturer datasheetHighPage 19
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−40 to 85°C”
Extracted Sep 6, 2026View source
Switching Frequency1.5 kHz
Response TimeNot specified
Current Consumption13 mAVerified · High · Page 19
AccuracyNot specified
Where to Buy
Best Price
Mouser
$136.9014 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E2A-S08KS02-M5-B1 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 2MM CYLIND | 2.0 mm | $126.17 |
| E2B-S08KS02-WP-C1 2M | Omron Automation and Safety | SENSOR PROX INDUCTIVE 2MM CYLIND | 2.0 mm | $40.12 |
| E2CY-C2A | Omron Automation and Safety | SENSOR PROX INDUCTIVE 2MM CYLIND | 2.0 mm | $229.94 |
| E2E-X2B1D12 2M | Omron Automation and Safety | SENSOR INDUCT 2MM PNP M12 NO | 2.0 mm | $79.08 |
| E2F-X2Y2 | Omron Automation and Safety | SENSOR PROX INDUCTIVE 2MM CYLIND | 2.0 mm | $193.07 |
