Proximity Sensors - Industrial

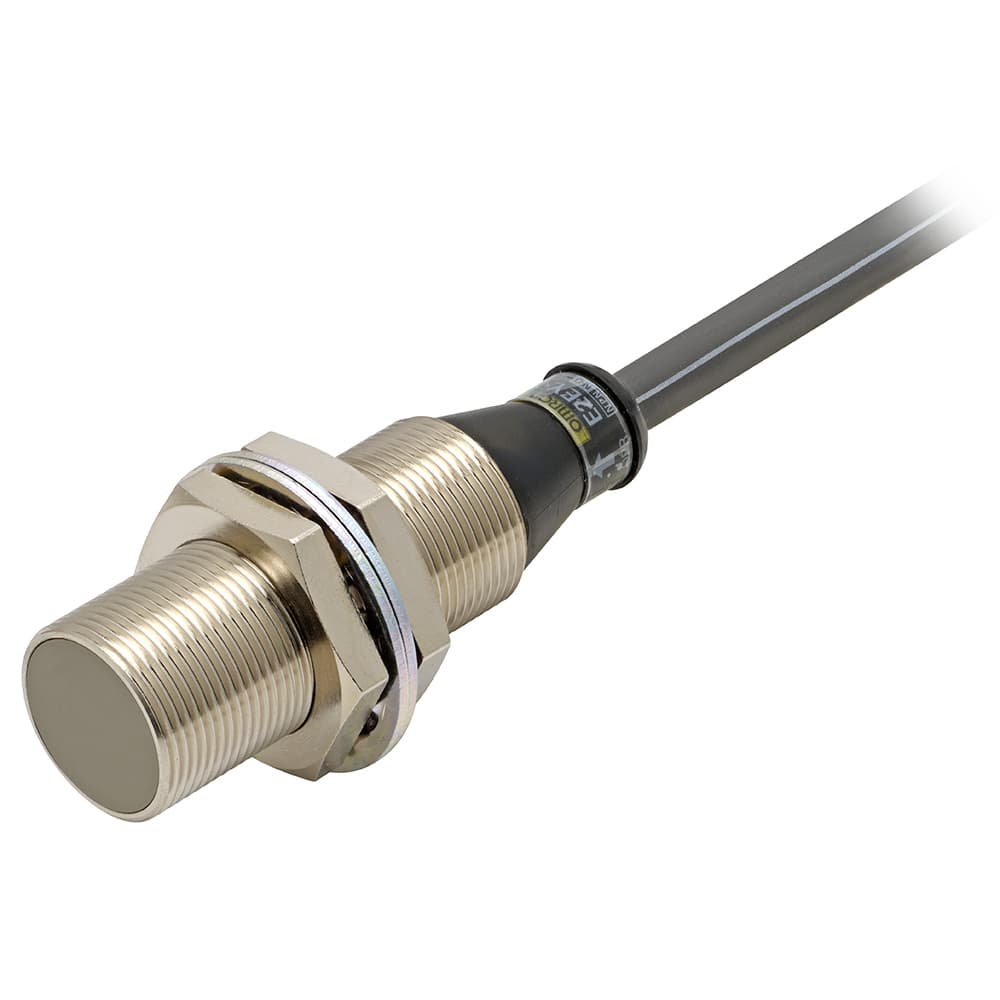

Omron Automation and SafetyE2EY-X4C1
Omron Automation and Safety E2EY-X4C1 is an inductive sensor. Specifications include a sensing range of 4 mm, /Operation mode DC 3-wire, NPN output, IP67 protection, 12-24V supply, M18, Nickel-Plated Brass housing, and an operating temperature of -10°C to 55°C.
Engineering Specifications
10 of 13 fields available · 77%Verified from distributor listing5 of 10 verified specifications with source evidence
Sensor TypeInductive
Sensing MethodNot specified
Sensing Distance4.0 mm
Output Type/Operation mode DC 3-wire, NPNVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: cross-table ordering-matrix row for exact target identity
Excerpt: “/Operation mode DC 3-wire, NPN”
Extracted Sep 7, 2026View source
Supply Voltage12-24VVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled compliance context
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialNickel-Plated Brass
Housing TypeM18
Operating Temperature-10°C to 55°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−10 to 55°C”
Extracted Sep 7, 2026View source
Switching Frequency70 Hz
Response TimeNot specified
Current Consumption20 mAVerified · High · Page 2
AccuracyNot specified
