Proximity Sensors - Industrial

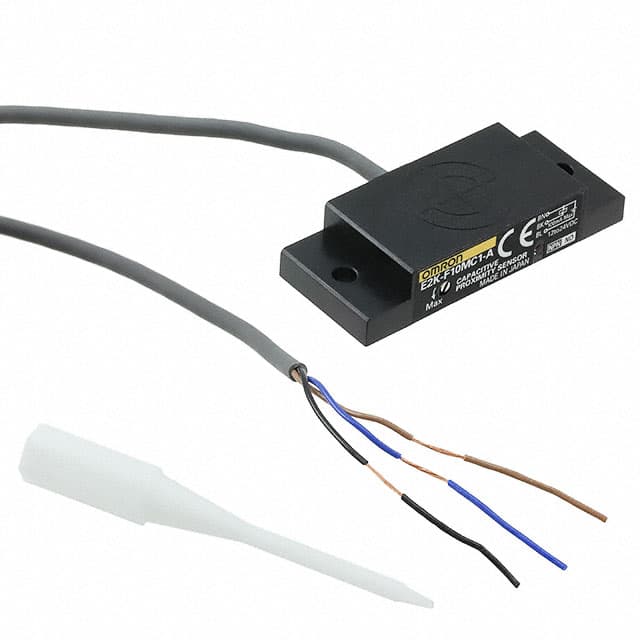

Omron Automation and SafetyE2K-F10MC1-A 2M
Omron Automation and Safety E2K-F10MC1-A 2M is a capacitive sensor. Specifications include a sensing range of 4–10 mm, NPN output, IP64/IP66 protection, 12-24V supply, Plastic housing, and an operating temperature of -10°C to 55°C.
Engineering Specifications
9 of 13 fields available · 69%Verified from distributor listing7 of 9 verified specifications with source evidence
Sensor TypeCapacitiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range4.0 – 10.0 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance with explicit unit
Excerpt: “10 mm”
Extracted Sep 7, 2026View source
Output TypeNPNVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 7, 2026View source
IP RatingIP64, IP66Verified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled compliance context
Excerpt: “IP64, IP66”
Extracted Sep 7, 2026View source
Housing MaterialPlastic
Housing TypeNot specified
Operating Temperature-10°C to 55°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “−10 to 55°C”
Extracted Sep 7, 2026View source
Switching Frequency100 Hz
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$217.001 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
