Industrial Automation and Controls
Pepperl+Fuchs, Inc.CBN10-F46-E2

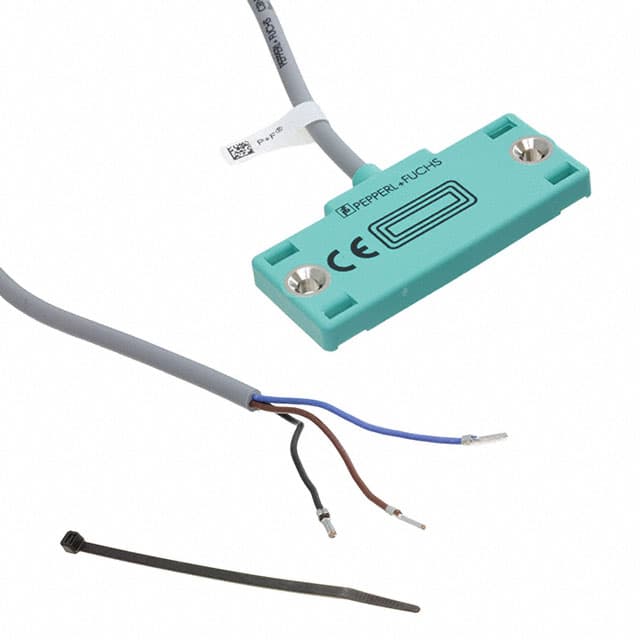

Pepperl+Fuchs, Inc. CBN10-F46-E2 is a capacitive sensor. Specifications include a sensing range of 10 mm, PNP output, IP67 protection, 10-30V supply, PBT housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $130.30
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
9 of 13 fields available · 69%Verified specifications8 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeCapacitiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance10.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10 ... 30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialPBTVerified · High · Page 1
Housing TypeNot specified
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25 ... 70 °C”
Extracted Sep 6, 2026View source
Switching Frequency5 HzVerified · High · Page 1
Response TimeNot specified
Current Consumption15 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
All retailer offers (1)
- ViewDigiKey$130.3035 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Capacitive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| CBB4-12GH60-E2-V1 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 4MM PNP | 4.0 mm | $203.20 |
| CBN5-F46-E2 | Pepperl+Fuchs, Inc. | CAPACITIVE SEN 5MM PNP | 5.0 mm | $130.30 |
| 6030132 | SICK, Inc. | SENSOR PROX CAP 1MM-10MM FLANGE | 1.0 mm | $183.34 |
| 6037194 | SICK, Inc. | CAPACIT PROXIM SENSOR | 1.0 mm | $220.11 |
| 6058148 | SICK, Inc. | SENSOR PROX CAP 3MM-12MM CYLIND | 3.0 mm | $201.35 |
