Pepperl+Fuchs, Inc.NBB2-8GM30-E0

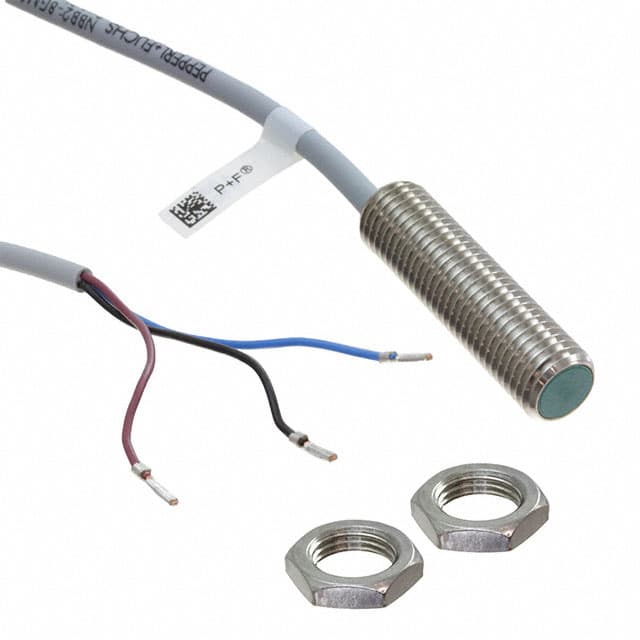

Pepperl+Fuchs, Inc. NBB2-8GM30-E0 is an inductive sensor. Specifications include a sensing range of 2 mm, NPN output, IP65/IP66/IP67 protection, 5-30V supply, M8, Brass, nickel-plated housing, and an operating temperature of -40°C to 85°C.
Buy from DigiKey· $119.24
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance2.0 mm
Output TypeNPNVerified · High · Page 1
Supply Voltage5-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “5 ... 30 V”
Extracted Sep 6, 2026View source
IP RatingIP65, IP66, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP66, IP67”
Extracted Sep 6, 2026View source
Housing MaterialBrass, nickel-platedVerified · High · Page 1
Housing TypeM8
Operating Temperature-40°C to 85°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-40 ... 85 °C”
Extracted Sep 6, 2026View source
Switching Frequency6.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
All retailer offers (1)
- ViewDigiKey$119.2428 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| NBB2-12GM50-E2-V1 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 2MM PNP | 2.0 mm | $81.43 |
| NBB2-8GM25-E2-V3 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 2MM PNP | 2.0 mm | $121.26 |
| NJ2-PD-US-2.062-V93 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN CYLINDER POSITION | 2.0 mm | $519.35 |
| NJ2-V3-N | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 2MM NAMUR | 2.0 mm | $100.98 |
| NBN4-F29-E0 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 4MM NPN | 4.0 mm | $65.74 |
