Pepperl+Fuchs, Inc.NBB4-12GM30-E2-V1

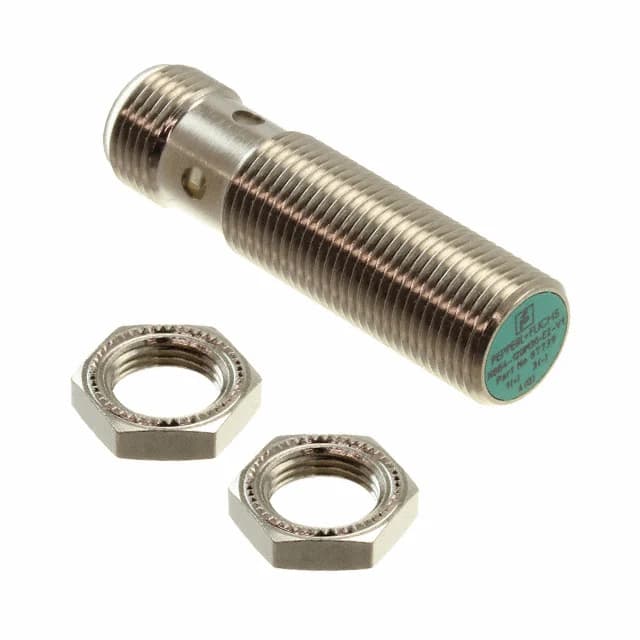

Pepperl+Fuchs, Inc. NBB4-12GM30-E2-V1 is an inductive sensor. Specifications include a sensing range of 4 mm, PNP output, IP67 protection, 10-30V supply, M12, Brass, nickel-plated housing, and an operating temperature of -40°C to 70°C.
Buy from DigiKey· $105.06
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance4.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10 ... 30 V”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialBrass, nickel-platedVerified · High · Page 1
Housing TypeM12
Operating Temperature-40°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-40 ... 70 °C”
Extracted Sep 6, 2026View source
Switching Frequency500 HzVerified · High · Page 1
Response TimeNot specified
Current Consumption15 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
All retailer offers (1)
- ViewDigiKey$105.0652 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| NBN4-12GM50-E2-V1 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 4MM NON-FLUSH PNP | 4.0 mm | $81.43 |
| NBN4-F29-E2 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 4MM PNP | 4.0 mm | $65.74 |
| NBN4-F29-E0 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 4MM NPN | 4.0 mm | $65.74 |
| NBB0.8-5GM25-E2 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 0.8MM PNP | 0.8 mm | $128.29 |
| NBB2-12GM50-E2-V1 | Pepperl+Fuchs, Inc. | INDUCTIVE SEN 2MM PNP | 2.0 mm | $81.43 |
