Pepperl+Fuchs, Inc.UB2000-30GM-E5-V15

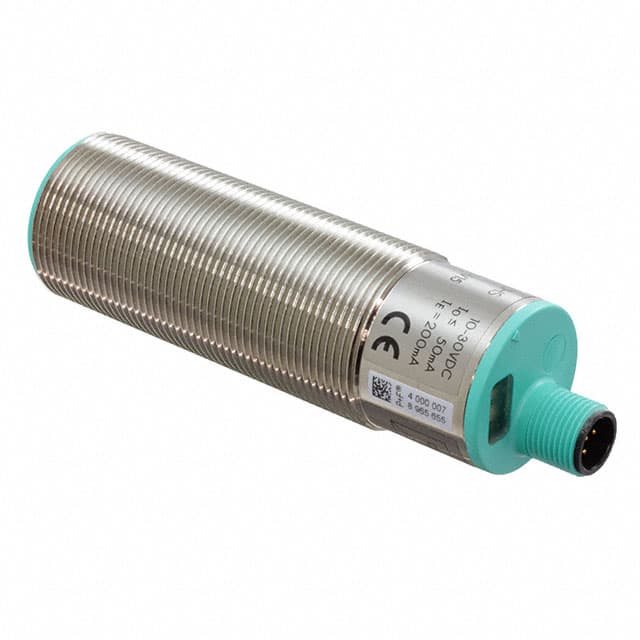

Pepperl+Fuchs, Inc. UB2000-30GM-E5-V15 is an ultrasonic sensor. Specifications include a sensing range of 80–2000 mm, 1 switch output PNP , Normally open/closed , programmable output, IP65 protection, 10-30V supply, M30, Nickel plated brass; plastic components: PBT housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $371.45
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
11 of 13 fields available · 85%Verified specifications9 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range80.0 – 2000.0 mm
Output Type1 switch output PNP , Normally open/closed , programmableVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “1 switch output PNP , Normally open/closed , programmable”
Extracted Sep 6, 2026View source
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10 ... 30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65”
Extracted Sep 6, 2026View source
Housing MaterialNickel plated brass; plastic components: PBTVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Nickel plated brass; plastic components: PBT”
Extracted Sep 6, 2026View source
Housing TypeM30
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25 ... 70 °C”
Extracted Sep 6, 2026View source
Switching Frequency3.3 HzVerified · High · Page 1
Response Time150 msVerified · High · Page 1
Current Consumption50 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
All retailer offers (1)
- ViewDigiKey$371.4514 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| UB1000-18GM75-E5-V15 | Pepperl+Fuchs, Inc. | ULTRASONIC SEN 70-1000MM PNP | 70.0 mm | $364.90 |
| UB1000-18GM75-U-V15 | Pepperl+Fuchs, Inc. | ULTRASONIC SEN 70-1000MM ANALOG | 70.0 mm | $417.08 |
| UB250-F77-E2-V31 | Pepperl+Fuchs, Inc. | ULTRASONIC SEN 20-250MM PNP | 20.0 mm | $187.62 |
| UC2000-30GM-IUR2-V15 | Pepperl+Fuchs, Inc. | ULTRASONIC SEN 80-2000MM ANALOG | 80.0 mm | $627.81 |
| UC2000-L2-E6-V15 | Pepperl+Fuchs, Inc. | ULTRASONIC | 2000.0 mm | $542.99 |
