Industrial Automation and Controls
SICK, Inc.6030702

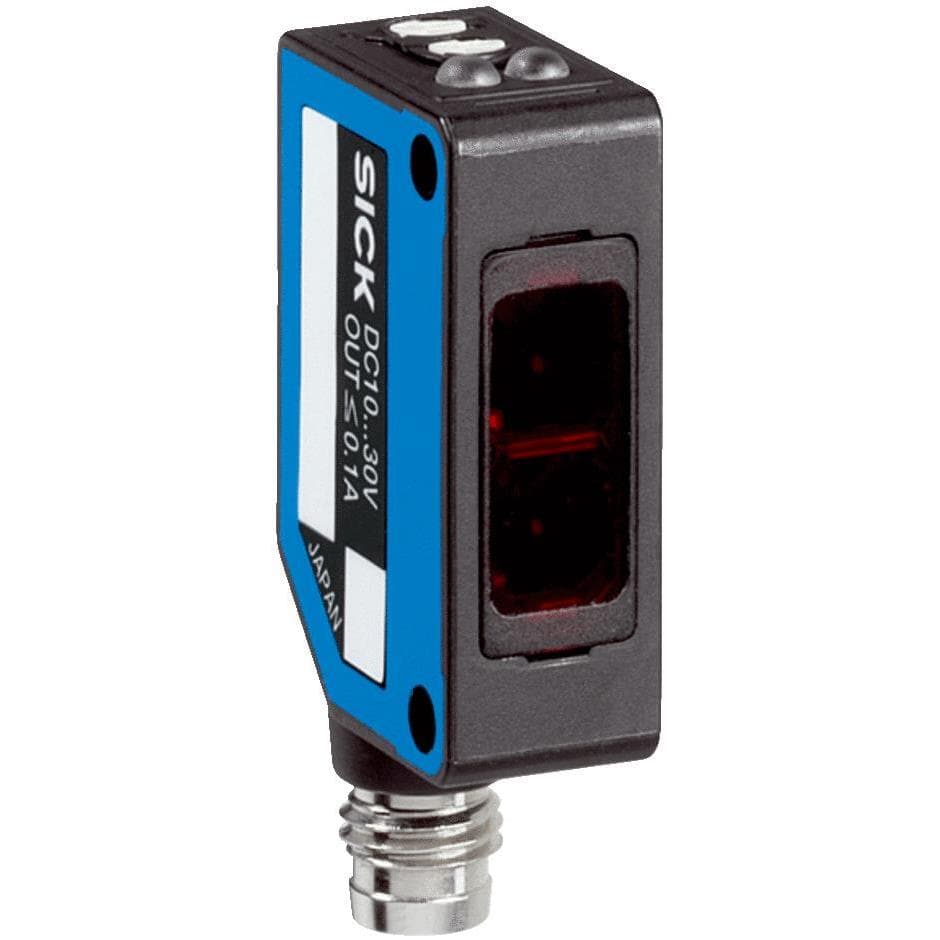

SICK, Inc. 6030702 is a photoelectric sensor. Specifications include a sensing range of 0–450 mm, PNP - Dark-ON/Light-ON output, IP65 protection, 10V ~ 30V supply, Plastic, ABS/PC/POM housing, and an operating temperature of -10°C to 50°C.
Buy from DigiKey· $339.38
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
10 of 13 fields available · 77%Verified specifications7 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 2
Sensing MethodProximity
Sensing Range0.0 – 450.0 mmVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: range min from labeled distance with explicit unit
Excerpt: “0 mm ... 450 mm”
Extracted Sep 8, 2026View source
Output TypePNP - Dark-ON/Light-ON
Supply Voltage10V ~ 30V
IP RatingIP65Verified · Medium · Page 3
Manufacturer datasheetMediumPage 3
Evidence: consistent across candidate regions
Excerpt: “IP65”
Extracted Sep 8, 2026View source
Housing MaterialPlastic, ABS/PC/POMVerified · High · Page 2
Housing TypeNot specified
Operating Temperature-10°C to 50°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “–10 °C ... +50 °C”
Extracted Sep 8, 2026View source
Switching Frequency2.0 kHzVerified · High · Page 2
Response Time0.25 msVerified · High · Page 2
Current ConsumptionNot specified
AccuracyNot specified
