SICK, Inc.6036918

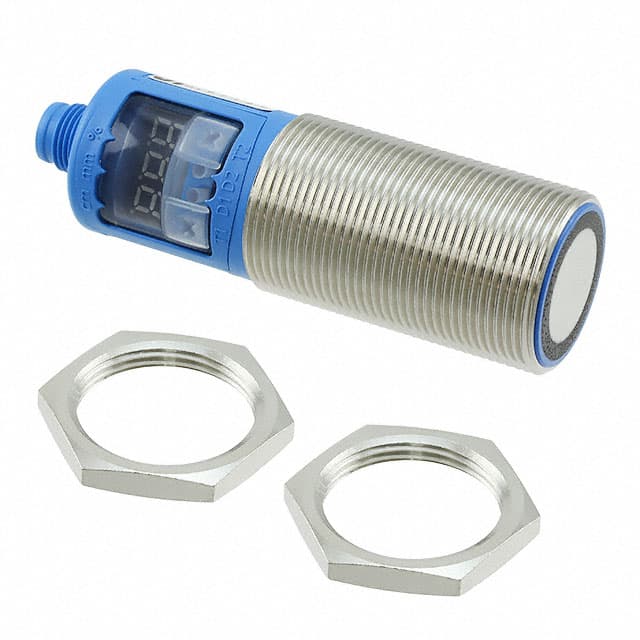

SICK, Inc. 6036918 is an ultrasonic sensor. Specifications include a sensing range of 200–1300 mm, Analog Current and Voltage output, IP67 protection, 9V ~ 30V, 15V ~ 30V supply, M30, Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) housing, and an operating temperature of -25°C to 70°C.
Buy from DigiKey· $1038.87
Offer may be outdated — verify current stock at the retailer before ordering.
View DatasheetEngineering Specifications
10 of 13 fields available · 77%Verified specifications5 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 2
Sensing MethodNot specified
Sensing Range200.0 – 1300.0 mm
Output TypeAnalog Current and Voltage
Supply Voltage9V ~ 30V, 15V ~ 30V
IP RatingIP67
Housing MaterialMetal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)Verified · High · Page 2
Manufacturer datasheetHighPage 2
Excerpt: “Metal (nickel-plated brass, PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin)”
Extracted Sep 6, 2026View source
Housing TypeM30
Operating Temperature-25°C to 70°CVerified · High · Page 2
Manufacturer datasheetHighPage 2
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “–25 °C ... +70 °C”
Extracted Sep 6, 2026View source
Switching FrequencyNot specified
Response Time92 msVerified · High · Page 2
Current ConsumptionNot specified
Accuracy1%Verified · High · Page 2
Where to Buy
All retailer offers (1)
- ViewDigiKey$1038.877 in stock · checked Aug 28, 2026 · may be outdated
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| 6037663 | SICK, Inc. | SENSOR PROX ULTRA 600-6000MM CYL | 600.0 mm | $625.37 |
| 6048420 | SICK, Inc. | SENSOR PROX ULTRA 120-1000MM CYL | 120.0 mm | $365.06 |
| 6048422 | SICK, Inc. | SENSOR PROX ULTRA 120-1000MM CYL | 120.0 mm | $326.21 |
| 6054711 | SICK, Inc. | ULTRASONIC SENSORS, UC30, UC30-2 | 3400.0 mm | $653.18 |
| 6063576 | SICK, Inc. | ULTRASONIC SENSOR | 13.0 mm | $584.84 |
