Sensors, Transducers
Telemecanique SensorsXXS30P1PM12

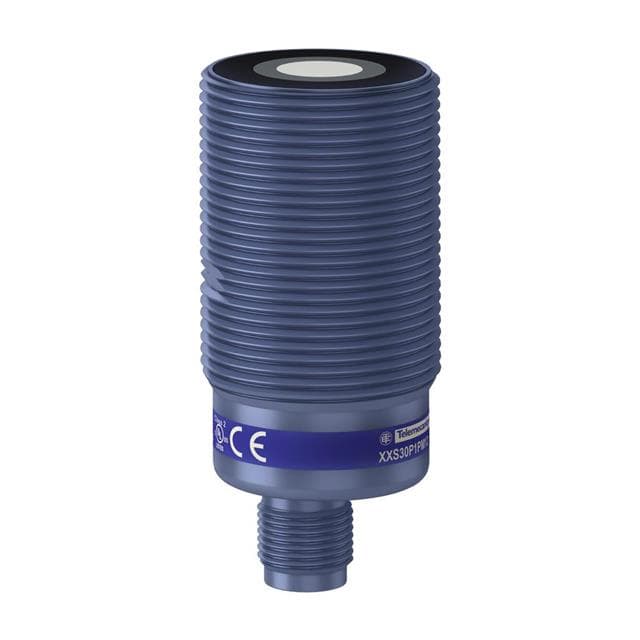

Telemecanique Sensors XXS30P1PM12 is an ultrasonic sensor. Specifications include a sensing range of 1000 mm (range 103.6–999.7 mm), PNP output, IP65/IP67 protection, 10-30V supply, M30, PBT housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
12 of 13 fields available · 92%Verified specifications9 of 12 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance1000.0 mm (range 103.6–999.7 mm)
Output TypePNPVerified · High · Page 1
Supply Voltage10-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67”
Extracted Sep 6, 2026View source
Housing MaterialPBTVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 70°C
Switching Frequency11 HzVerified · High · Page 1
Response Time45 msVerified · High · Page 1
Current Consumption30 mAVerified · High · Page 1
Accuracy0.1%Verified · High · Page 1
Where to Buy
Best Price
Mouser
$308.265 In Stock · checked Sep 6, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| VM18PNCQ | Telemecanique | ULT SEN 300KHZ 12V/24V | 508.0 mm | $145.75 |
| VM1PNOQ | Telemecanique | ULT SEN 300KHZ 12V/24V | 508.0 mm | $153.04 |
| XXA30B1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $353.97 |
| XXA30P1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $308.75 |
| XXA30S1PM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $368.97 |
