Proximity Sensors - Industrial
Telemecanique SensorsXS1N18PA349

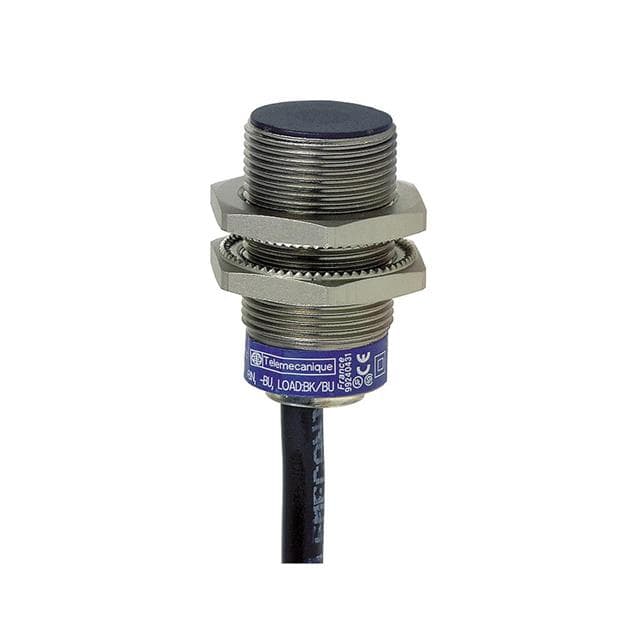

Telemecanique Sensors XS1N18PA349 is an inductive sensor. Specifications include a sensing range of 10 mm, PNP output, IP68/IP69K protection, 10-36V supply, M18, Nickel-Plated Brass housing, and an operating temperature of -25°C to 50°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications7 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance10.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP68, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP68, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel-Plated Brass
Housing TypeM18
Operating Temperature-25°C to 50°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…122 °F”
Extracted Aug 31, 2026View source
Switching Frequency1.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$160.5230 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS630B1PAL10TF | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $128.77 |
| XS630B1PAM12 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $136.46 |
| XSAV12373 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $217.90 |
| XS1M30MA250L2 | Telemecanique | INDUCTIVE SENSOR 240VAC 300MA XS | 10.0 mm | $235.93 |
| XS630B1DAL2 | Telemecanique | PROXIMITY SENSOR 30MM DC NO | 7.9 mm | $117.15 |
