Telemecanique SensorsXS230SANAL2

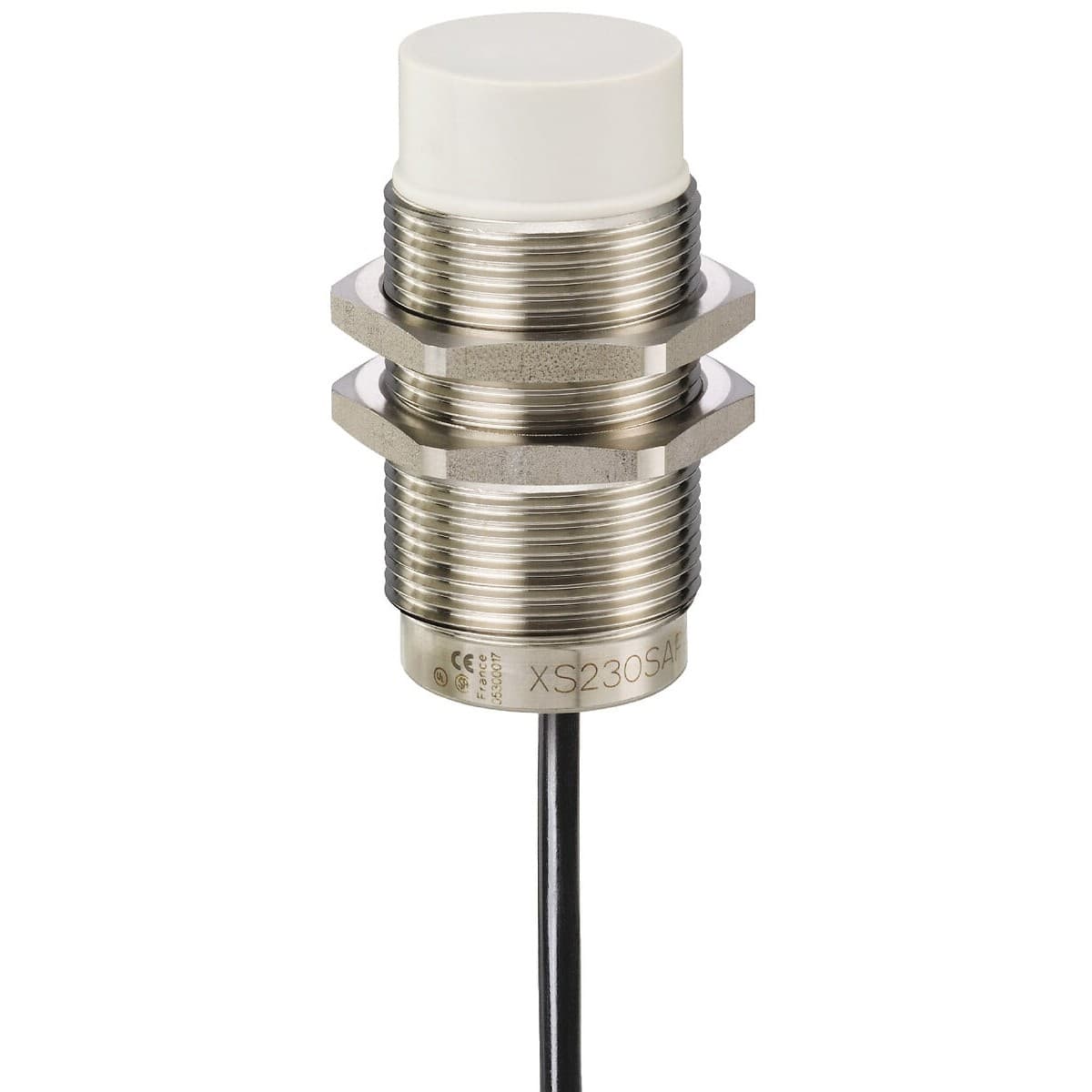

Telemecanique Sensors XS230SANAL2 is an inductive sensor. Specifications include a sensing range of 15–39.9 mm, NPN output, IP68/IP69K protection, 10-36V supply, M30, Stainless steel 316 L housing, and an operating temperature of -25°C to 85°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications10 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range15.0 – 39.9 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.59...1.57 in”
Extracted Aug 31, 2026View source
Output TypeNPNVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP68, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP68, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialStainless steel 316 LVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 85°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…185 °F”
Extracted Aug 31, 2026View source
Switching Frequency500 HzVerified · High · Page 1
Response Time0.6 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$127.531 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
