Proximity Sensors - Industrial
Telemecanique SensorsXS4P18PA340D

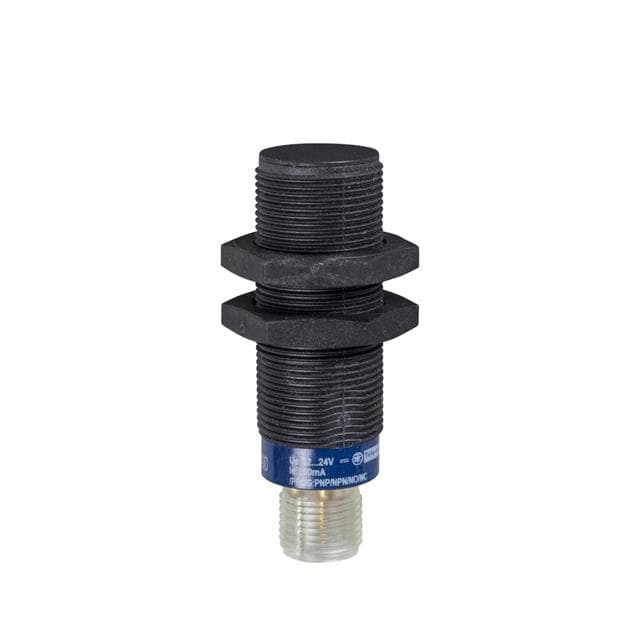

Telemecanique Sensors XS4P18PA340D is an inductive sensor. Specifications include a sensing range of 8 mm, PNP output, IP67 protection, 10-36V supply, M18, PPS housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications9 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance8.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialPPSVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Sep 2, 2026View source
Switching Frequency2.0 kHzVerified · High · Page 1
Response Time0.15 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$79.2210 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS118B3PCM12 | Telemecanique | INDUCTIVE SENSOR XS1 M18, PNP NO | 8.0 mm | $129.38 |
| XS630B1PAL10TF | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $128.77 |
| XS630B1PAM12 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $136.46 |
| XSAV12373 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $217.90 |
| XS618B1PAM12TF | Telemecanique Sensors | PROX SENSOR 18MM WITH HIGH TEMP | 8.0 mm | $117.15 |
