Proximity Sensors - Industrial
Telemecanique SensorsXS618B1PBM12

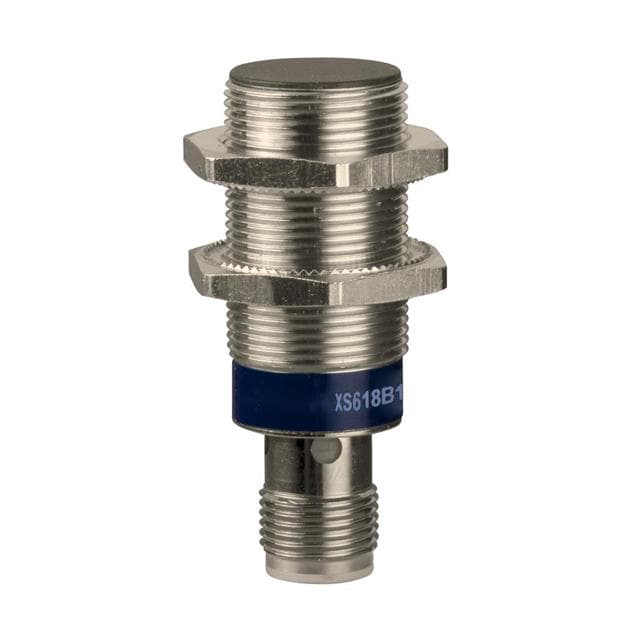

Telemecanique Sensors XS618B1PBM12 is an inductive sensor. Specifications include a sensing range of 4.1–7.9 mm, PNP output, IP67/IP69K protection, 10-58V supply, M18, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications10 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range4.1 – 7.9 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.16...0.31 in”
Extracted Aug 31, 2026View source
Output TypePNPVerified · High · Page 1
Supply Voltage10-58VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…58 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency1.0 kHzVerified · High · Page 1
Response Time0.3 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$126.9715 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS1N18PC410D | Telemecanique | INDUCTIVE SENSOR XS1 M18, L48MM, | 5.0 mm | $125.65 |
| XS518B1PAM12 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 5.0 mm | $106.83 |
| XS612B1PAL2 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 2.5 mm | $93.94 |
| XS618B1PAL5 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 4.1 mm | $116.92 |
| XS630B1PAL10TF | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 7.9 mm | $128.77 |
