Photoelectric Sensors
Telemecanique SensorsXUVR1218PBNM8

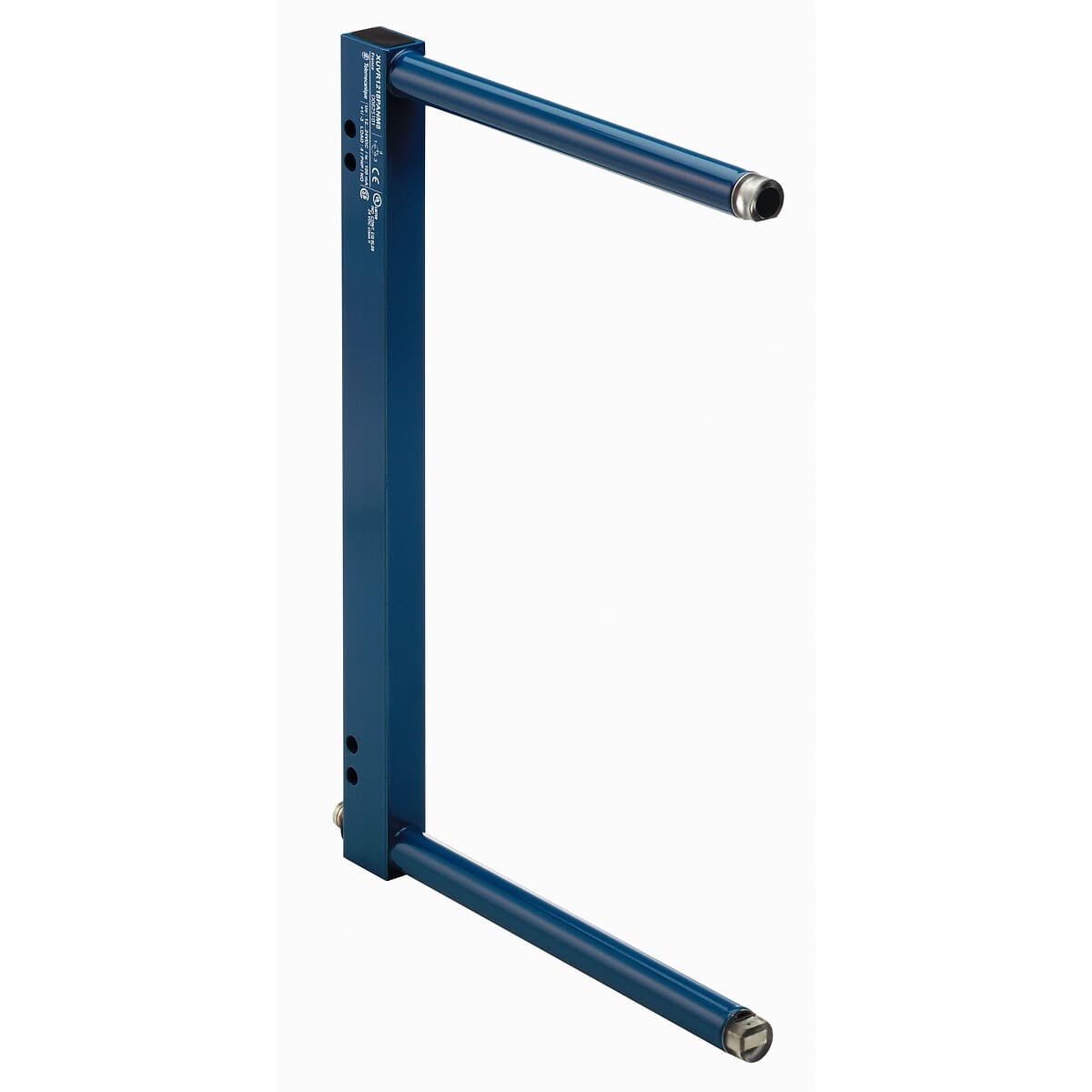

Telemecanique Sensors XUVR1218PBNM8 is a photoelectric sensor. Specifications include a sensing range of 180 mm, PNP output, IP65/IP67 protection, 12-24V supply, Fork, Painted aluminium and polyamide/glass housing, and an operating temperature of -10°C to 60°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications9 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypePhotoelectricVerified · High · Page 1
Sensing MethodThrough-Beam
Sensing Distance180.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12...24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP65, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67”
Extracted Sep 7, 2026View source
Housing MaterialPainted aluminium and polyamide/glassVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Painted aluminium and polyamide/glass”
Extracted Sep 7, 2026View source
Housing TypeForkVerified · High · Page 1
Operating Temperature-10°C to 60°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “14…140 °F”
Extracted Sep 7, 2026View source
Switching Frequency4.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption20 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$517.34Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
