Proximity Sensors - Industrial
Telemecanique SensorsXXS30B4VM12

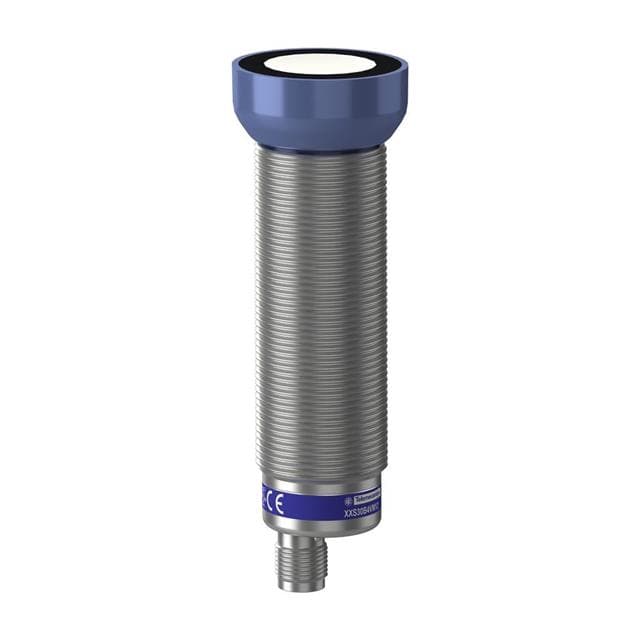

Telemecanique Sensors XXS30B4VM12 is an ultrasonic sensor. Specifications include a sensing range of 420.6–3999 mm, Analog Voltage output, IP65/IP67 protection, 14-30V supply, M30, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range420.6 – 3999.0 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “1.38…13.12 ft”
Extracted Sep 1, 2026View source
Output TypeAnalog Voltage
Supply Voltage14-30VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “14…30 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Sep 1, 2026View source
Switching FrequencyNot specified
Response TimeNot specified
Current Consumption65 mAVerified · High · Page 1
Accuracy0.1%Verified · High · Page 1
Where to Buy
Best Price
Mouser
$488.102 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Ultrasonic sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XX918A3F1M12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 51.8 mm | $228.16 |
| XXA18S1VM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 103.6 mm | $574.55 |
| XXA30B1VM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $393.11 |
| XXA30P1VM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $348.20 |
| XXA30S1VM12 | Telemecanique | ULTRASONIC SENSORS XX, ULTRASONI | 155.4 mm | $408.02 |
