Proximity Sensors - Industrial

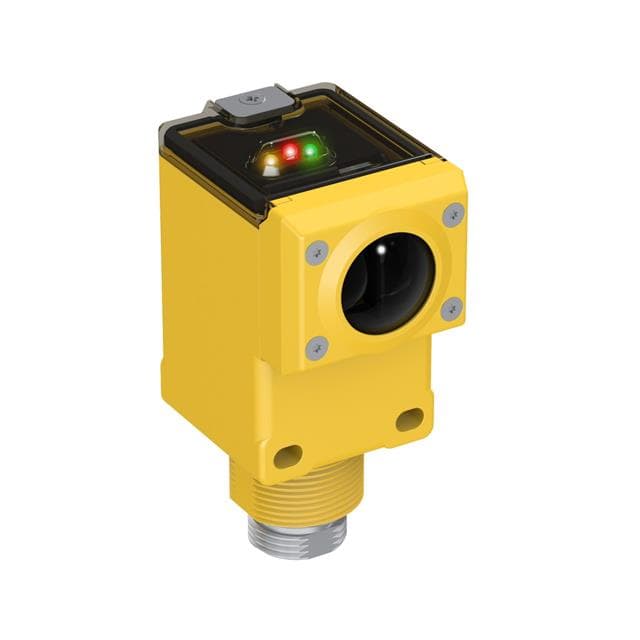

Banner EngineeringQ45UR3BA63CQ
Banner Engineering Q45UR3BA63CQ is an ultrasonic sensor. Specifications include a sensing range of 50–250 mm, Bipolar: one current PNP and one current NPN open collector output, IP67 protection, 12-24V supply, Module, Thermoplastic Polyester housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified from distributor listing4 of 9 verified specifications with source evidence
Sensor TypeUltrasonicVerified · High · Page 1
Sensing MethodNot specified
Sensing Range50.0 – 250.0 mm
Output TypeBipolar: one current PNP and one current NPN open collectorVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Bipolar: one current PNP and one current NPN open collector”
Extracted Sep 7, 2026View source
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12 V DC to 24 V DC”
Extracted Sep 7, 2026View source
IP RatingIP67
Housing MaterialThermoplastic Polyester
Housing TypeModule
Operating Temperature-25°C to 70°C
Switching FrequencyNot specified
Response Time160 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
