Distance Sensors - Industrial

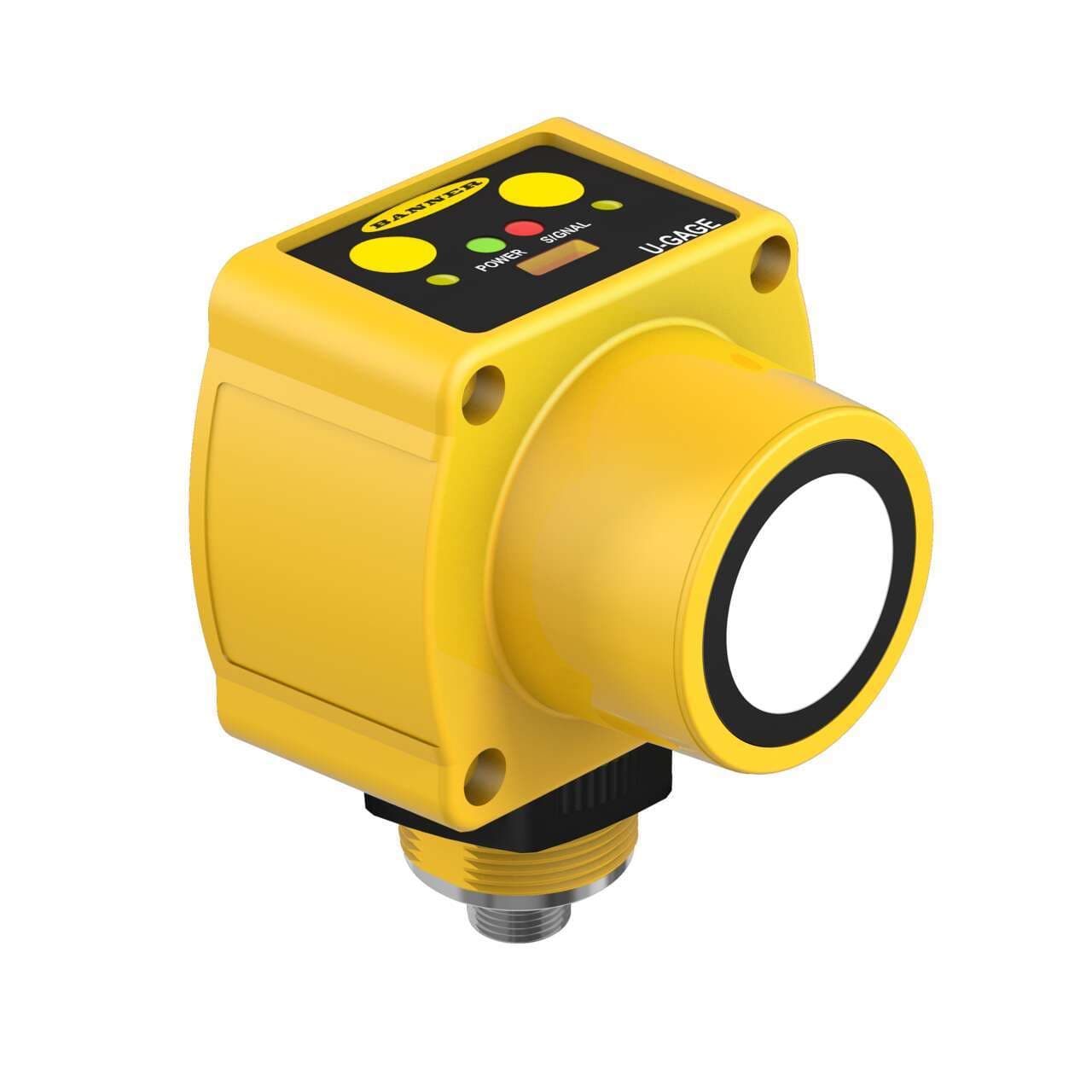

Banner EngineeringQT50UDBQ6
Banner Engineering QT50UDBQ6 is an ultrasonic sensor. Specifications include a sensing range of 200–8000 mm, IP67 protection, 10-30V supply, ABS/Polycarbonate housing, and an operating temperature of -20°C to 70°C.
Engineering Specifications
7 of 13 fields available · 54%Verified specifications
Sensor TypeUltrasonicVerified · High · Page 1
Sensing Range200.0 – 8000.0 mmVerified · High · Page 1
Evidence: labeled distance range with explicit units
Supply Voltage10-30VVerified · High · Page 1
Evidence: labeled voltage with V unit
IP RatingIP67Verified · Medium · Page 10
Evidence: consistent across candidate regions
Housing MaterialABS/PolycarbonateVerified · High · Page 1
Operating Temperature-20°C to 70°CVerified · High · Page 1
Evidence: labeled range with explicit °C/°F/K unit
Response Time100 msVerified · High · Page 1
Additional specifications not yet verified (6)Show
- Sensing MethodNot specified
- Output TypeNot specified
- Housing TypeNot specified
- Switching FrequencyNot specified
- Current ConsumptionNot specified
- AccuracyNot specified
These fields have not yet been verified and do not indicate a defect.
These fields are pending verification and remain discoverable for completeness.
