Omron Automation and SafetyE2EC-C3D1

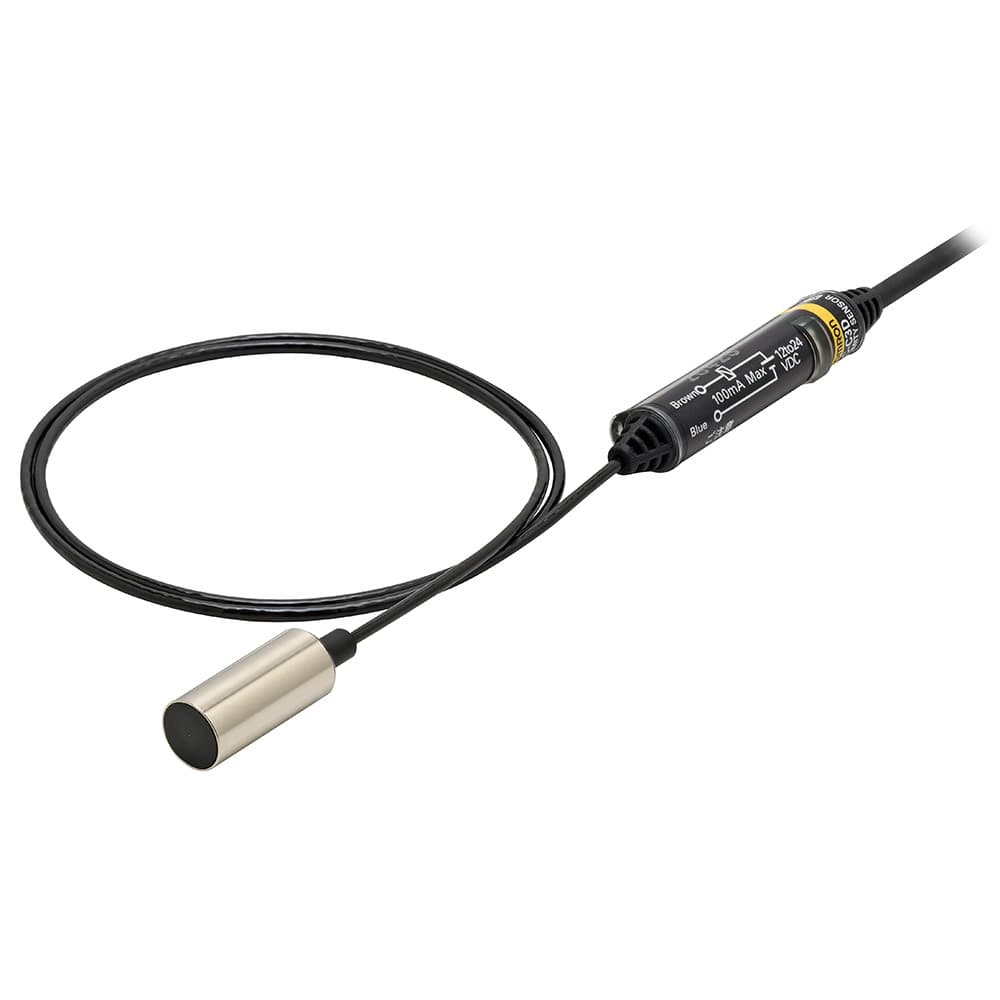

Omron Automation and Safety E2EC-C3D1 is an inductive sensor. Specifications include a sensing range of 3 mm, NPN-NO, 2-Wire output, IP67 protection, 12-24V supply, Cylinder, Nickel-Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified from distributor listing5 of 10 verified specifications with source evidence
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance3.0 mm
Output TypeNPN-NO, 2-Wire
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 7, 2026View source
IP RatingIP67Verified · Medium · Page 2
Manufacturer datasheetMediumPage 2
Evidence: consistent across candidate regions
Excerpt: “IP67”
Extracted Sep 7, 2026View source
Housing MaterialNickel-Plated Brass
Housing TypeCylinder
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-25° C to 70° C”
Extracted Sep 7, 2026View source
Switching Frequency1.0 kHz
Response TimeNot specified
Current Consumption0.8 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$272.843 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
