Proximity Sensors - Industrial
Omron Automation and SafetyE2EH-X3B1 2M

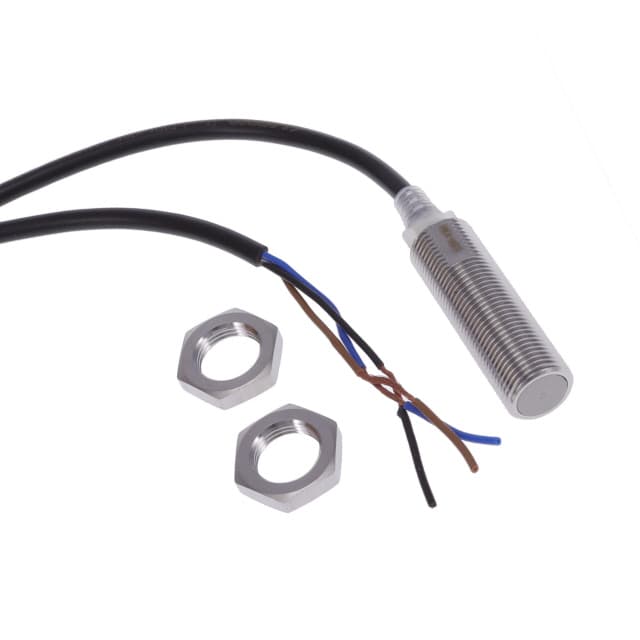

Omron Automation and Safety E2EH-X3B1 2M is an inductive sensor. Specifications include a sensing range of 3 mm, DC 3-wire (PNP) output, IP69K/IP67 protection, 12-24V supply, M12, Stainless Steel housing, and a minimum operating temperature of 80°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications5 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductive
Sensing MethodNot specified
Sensing Distance3.0 mm
Output TypeDC 3-wire (PNP)Verified · High · Page 1
Supply Voltage12-24VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “12 to 24 VDC”
Extracted Sep 6, 2026View source
IP RatingIP69K, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP69K, IP67”
Extracted Sep 6, 2026View source
Housing MaterialStainless Steel
Housing TypeM12
Operating Temperature80°C to —Verified · Medium · Page 1
Manufacturer datasheetMediumPage 1
Evidence: labeled single value with explicit temp unit
Excerpt: “80°C”
Extracted Sep 6, 2026View source
Switching Frequency500 Hz
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$207.757 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| E2E-S05N03-WC-B1 2M | Omron Automation and Safety | SENSOR PROX INDUCTIVE 3MM CYLIND | 3.0 mm | $113.83 |
| E2E-S05N03-WC-C1 2M | Omron Automation and Safety | SENSOR PROX INDUCTIVE 3MM CYLIND | 3.0 mm | $113.83 |
| E2E-X3D1-N | Omron Automation and Safety | SENSOR PROX INDUCTIVE 3MM CYLIND | 3.0 mm | $136.55 |
| E2EC-C3D1 | Omron Automation and Safety | SENSOR PROX INDUCT 2.5MM CYLIND | 3.0 mm | $364.55 |
| TL-L100-7 | Omron Automation and Safety | SENSOR PROX INDUCT 100MM CYLIND | 100.0 mm | $1157.45 |
