Sensors, Transducers

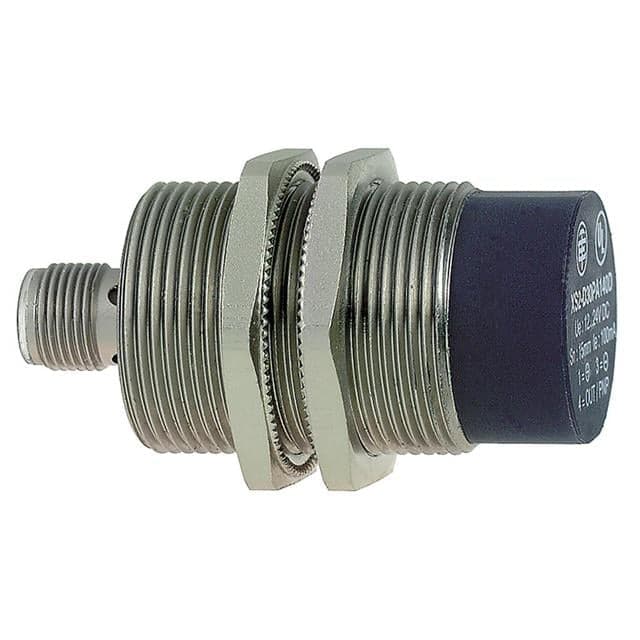

Telemecanique SensorsXS2M30MA250K
Telemecanique Sensors XS2M30MA250K is an inductive sensor. Specifications include a sensing range of 15 mm, 1 NO output, IP67 protection, 20-264V supply, M30, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications6 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance15.0 mm
Output Type1 NOVerified · High · Page 1
Supply Voltage20-264VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “20…264 V AC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 70°C
Switching Frequency1.0 kHzVerified · High · Page 1
Response TimeNot specified
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$217.12Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS2M30MA250 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 15.0 mm | $208.86 |
| XS230SANAL2 | Telemecanique | SENSOR, INDUCTIVE PROXIMITY | 15.0 mm | $104.17 |
| XS7C4A1DPG13 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 15.0 mm | $233.92 |
| XS7C4A1MPN12 | Telemecanique | INDUCTIVE SENSOR, XS7, 40X40X117 | 15.0 mm | $213.53 |
| XS8C1A1NAL2 | Telemecanique | PROXIMITY SENSOR SZ C DC PNP XS8 | 15.0 mm | $355.76 |
