Proximity Sensors - Industrial

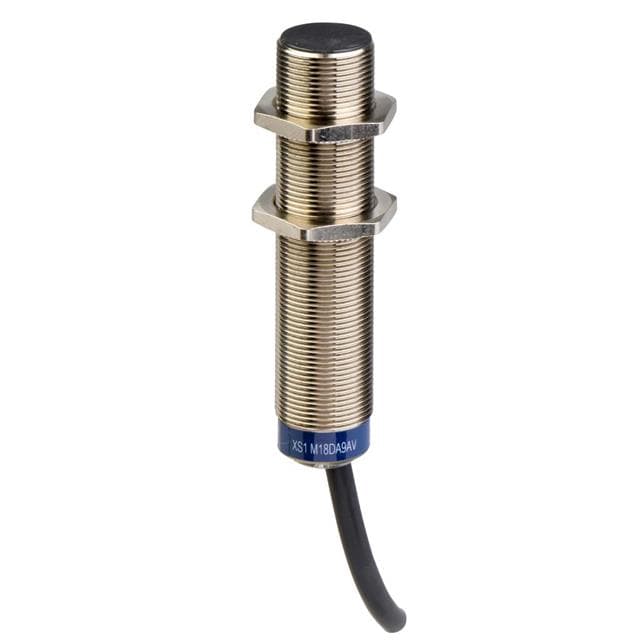

Telemecanique SensorsXS1M18DA9AV
Telemecanique Sensors XS1M18DA9AV is an inductive sensor. Specifications include a sensing range of 5 mm, PNP and NPN output, 10-36V supply, M18, Nickel Plated Brass housing, and an operating temperature of -40°C to 85°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications7 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance5.0 mm
Output TypePNP and NPNVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingNot specified
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-40°C to 85°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-40…185 °F”
Extracted Aug 31, 2026View source
Switching FrequencyNot specified
Response Time0.15 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$177.345 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS1M18AB120 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 5.0 mm | $265.07 |
| XS1M18MA250L1 | Telemecanique | INDUCTIVE SENSOR 240VAC 200MA XS | 5.0 mm | $202.03 |
| XS1N18PC410D | Telemecanique | INDUCTIVE SENSOR XS1 M18, L48MM, | 5.0 mm | $125.65 |
| XS518B1PAM12 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 5.0 mm | $106.83 |
| XS518BLNAL2 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 5.0 mm | $98.54 |
