Proximity Sensors - Industrial

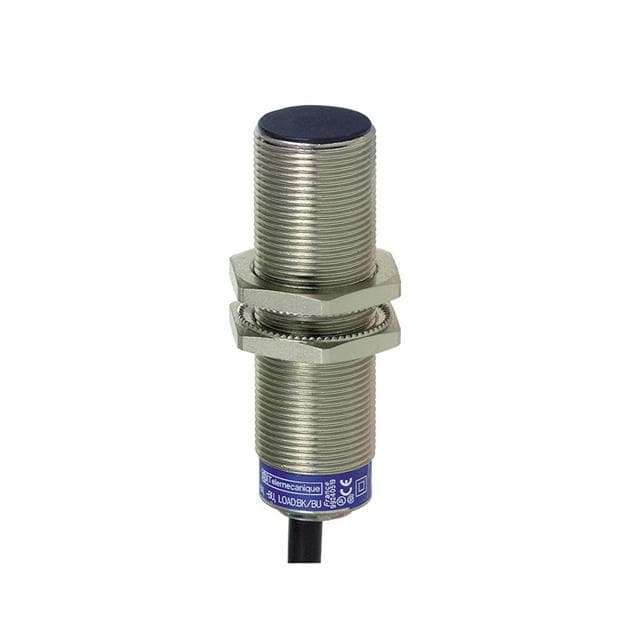

Telemecanique SensorsXS1M18AB120
Telemecanique Sensors XS1M18AB120 is an inductive sensor. Specifications include a sensing range of 5 mm, 1 NC output, IP67 protection, 10-36V supply, M18, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance5.0 mm
Output Type1 NCVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency500 HzVerified · High · Page 1
Response TimeNot specified
Current Consumption4 mAVerified · High · Page 1
AccuracyNot specified
