Proximity Sensors - Industrial
Telemecanique SensorsXS618B1MBL2

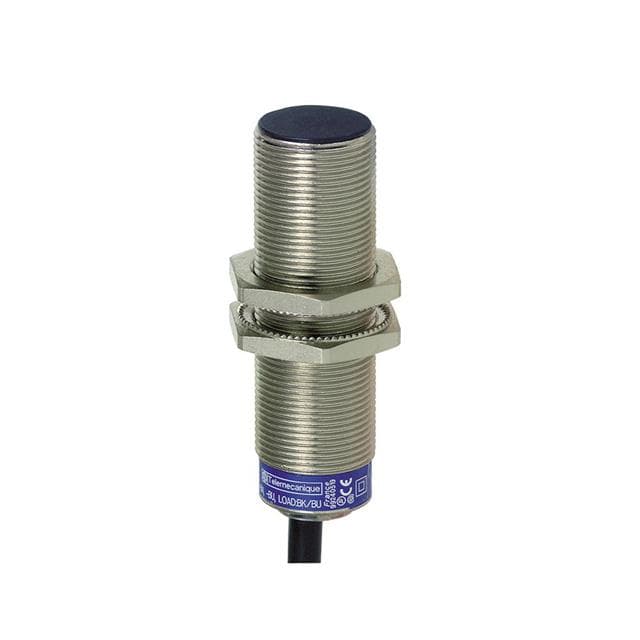

Telemecanique Sensors XS618B1MBL2 is an inductive sensor. Specifications include a sensing range of 4.1–7.9 mm, 1 NC output, IP68/IP69K protection, 20-264V supply, M18, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications9 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Range4.1 – 7.9 mmVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled distance range with explicit units
Excerpt: “0.16...0.31 in”
Extracted Aug 31, 2026View source
Output Type1 NCVerified · High · Page 1
Supply Voltage20-264VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “20…264 V AC”
Extracted Sep 6, 2026View source
IP RatingIP68, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP68, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM18
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency1.0 kHzVerified · High · Page 1
Response Time0.5 msVerified · High · Page 1
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$120.6524 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
