Proximity Sensors - Industrial
Telemecanique SensorsXS106B3PBM8

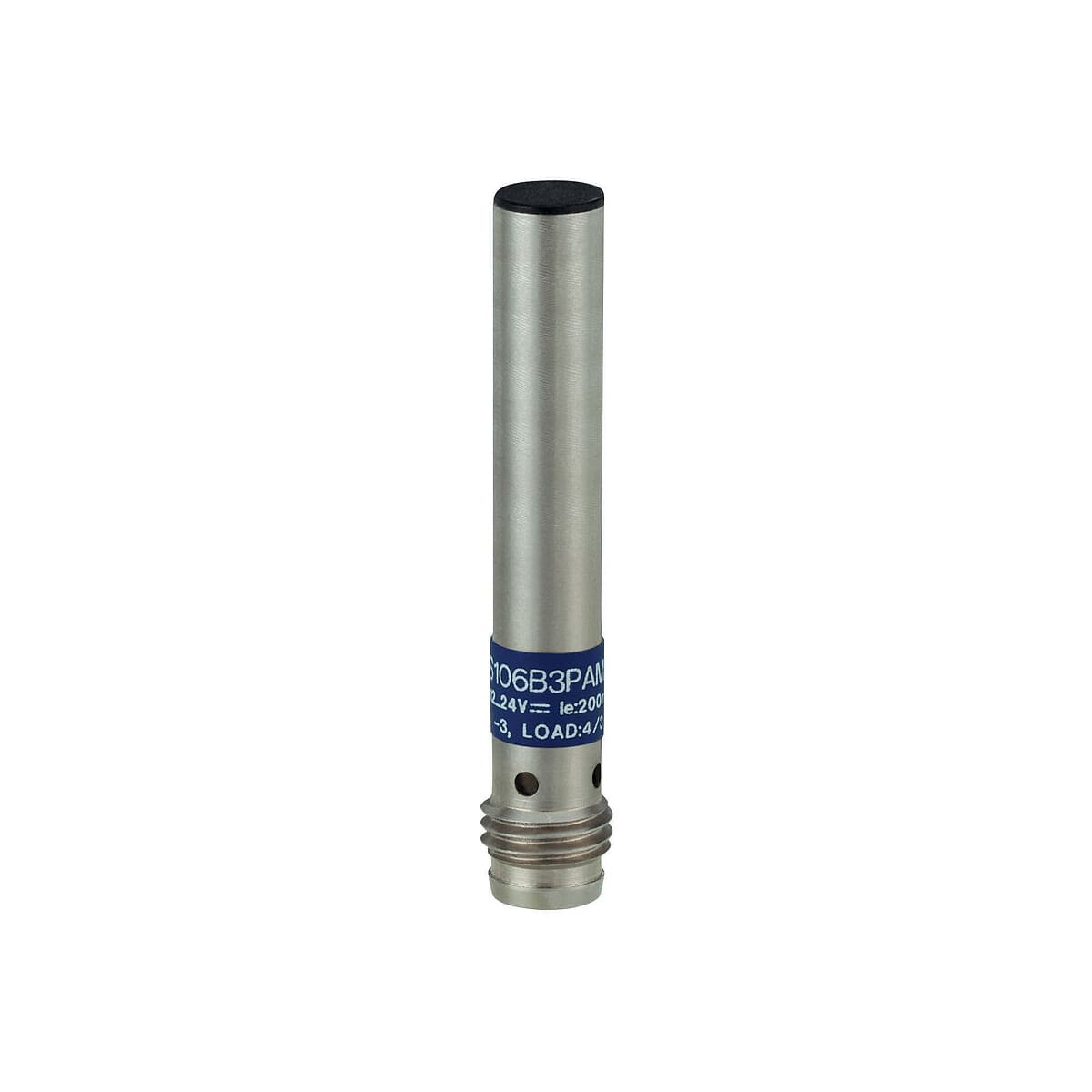

Telemecanique Sensors XS106B3PBM8 is an inductive sensor. Specifications include a sensing range of 2.5 mm, PNP output, IP65/IP67 protection, 10-36V supply, Cylindrical Ø 6.5 mm plain, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications10 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance2.5 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 7, 2026View source
IP RatingIP65, IP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67”
Extracted Sep 7, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeCylindrical Ø 6.5 mm plainVerified · High · Page 1
Manufacturer datasheetHighPage 1
Excerpt: “Cylindrical Ø 6.5 mm plain”
Extracted Sep 7, 2026View source
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency2.5 kHzVerified · High · Page 1
Response Time0.2 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$148.802 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
