Proximity Sensors - Industrial
Telemecanique SensorsXS4P08NB340

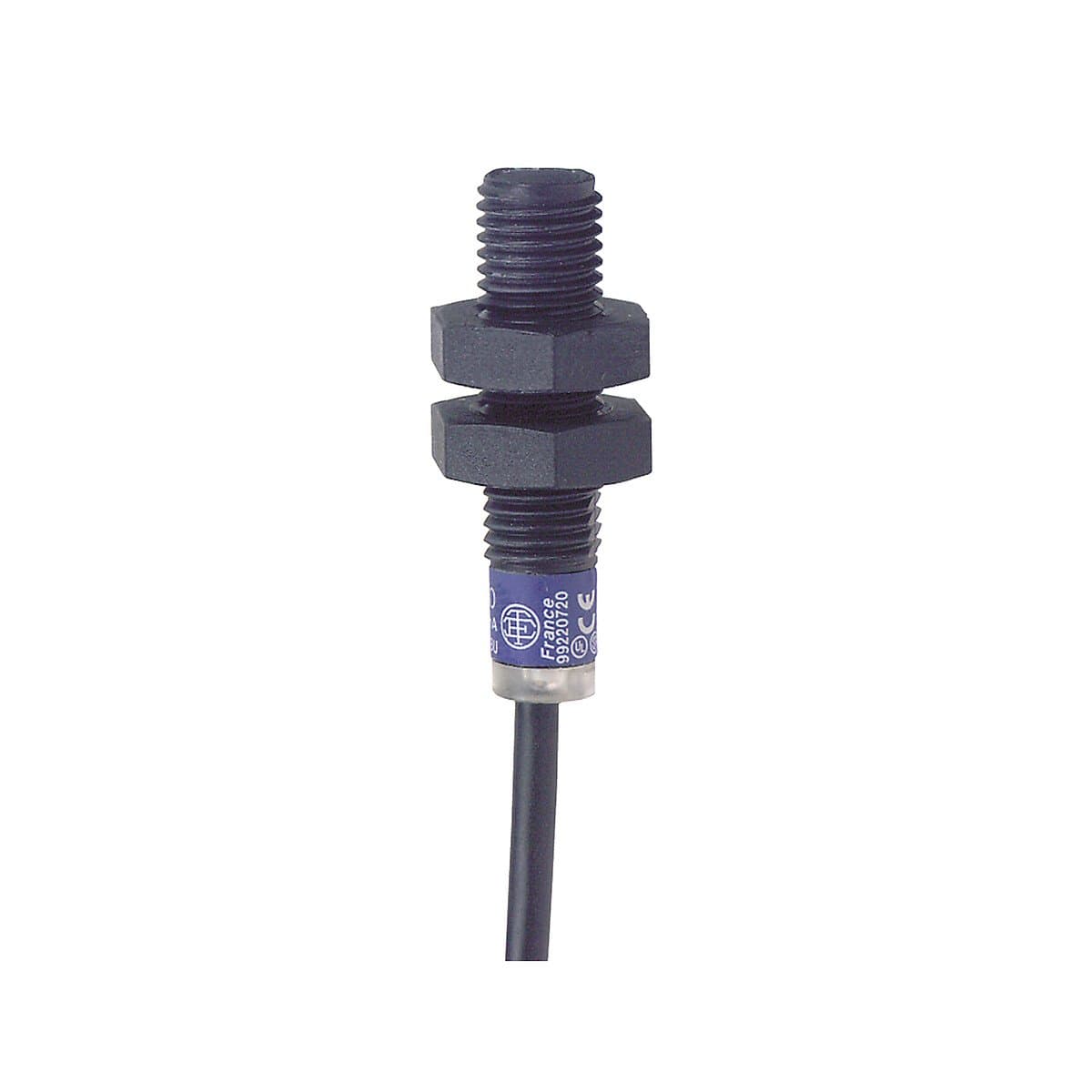

Telemecanique Sensors XS4P08NB340 is an inductive sensor. Specifications include a sensing range of 2.5 mm, NPN output, IP67 protection, 10-36V supply, M8, PPS housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
10 of 13 fields available · 77%Verified specifications8 of 10 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance2.5 mm
Output TypeNPNVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialPPSVerified · High · Page 1
Housing TypeM8
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Sep 2, 2026View source
Switching Frequency5.0 kHzVerified · High · Page 1
Response TimeNot specified
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$235.783 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
