Proximity Sensors - Industrial

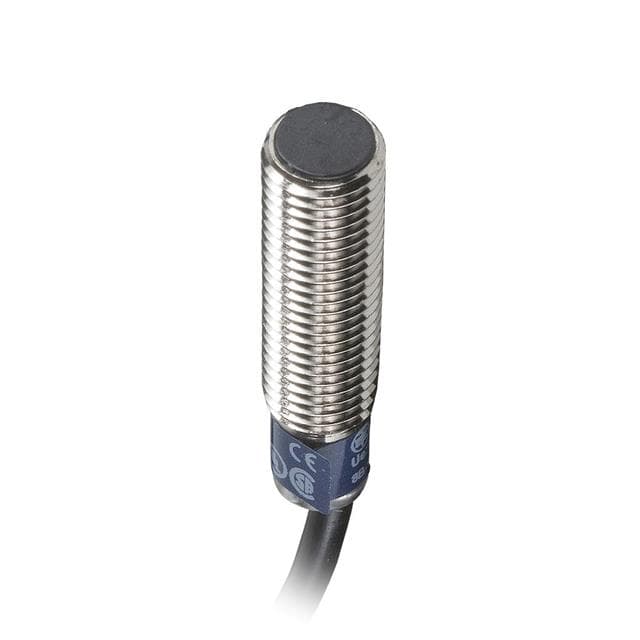

Telemecanique SensorsXS508B1PAL2
Telemecanique Sensors XS508B1PAL2 is an inductive sensor. Specifications include a sensing range of 1.5 mm, PNP output, IP67 protection, 10-36V supply, M8, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
9 of 13 fields available · 69%Verified specifications7 of 9 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance1.5 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-36VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…36 V DC”
Extracted Sep 6, 2026View source
IP RatingIP67Verified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP67”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM8
Operating Temperature-25°C to 70°CVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled range with explicit °C/°F/K unit
Excerpt: “-13…158 °F”
Extracted Aug 31, 2026View source
Switching Frequency5.0 kHzVerified · High · Page 1
Response TimeNot specified
Current ConsumptionNot specified
AccuracyNot specified
Where to Buy
Best Price
Mouser
$100.3921 In Stock · checked Sep 4, 2026
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
Related Sensors — Potential alternatives
Other Inductive sensors you may consider, including options from other manufacturers.
| MPN | Manufacturer | Description | Range | Price |
|---|---|---|---|---|
| XS106B3PBM8 | Telemecanique | INDUCTIVE SENSOR 36VDC 200MA XS | 2.5 mm | $122.95 |
| XS118B3PCM12 | Telemecanique | INDUCTIVE SENSOR XS1 M18, PNP NO | 8.0 mm | $129.38 |
| XS1N18PA349 | Telemecanique | INDUCTIVE PROXIMITY SENSORS XS, | 10.0 mm | $134.35 |
| XS1N18PC410D | Telemecanique | INDUCTIVE SENSOR XS1 M18, L48MM, | 5.0 mm | $125.65 |
| XS212BLPAL2 | Telemecanique | INDUCTIVE SENSOR XS2 M12, L44MM, | 4.0 mm | $50.71 |
