Telemecanique SensorsXS630B5PAM12

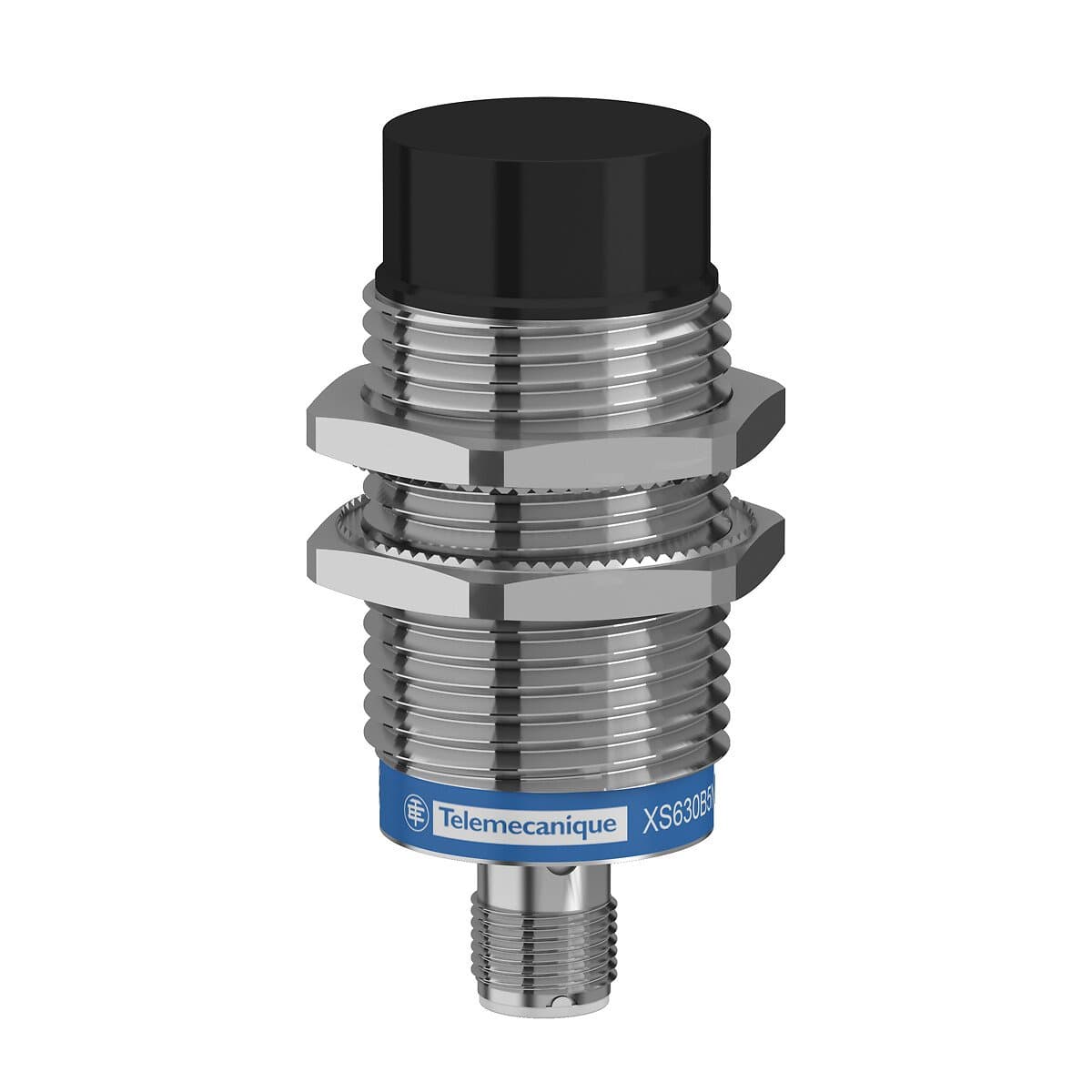

Telemecanique Sensors XS630B5PAM12 is an inductive sensor. Specifications include a sensing range of 30 mm, PNP output, IP65/IP67/IP69K protection, 10-58V supply, M30, Nickel Plated Brass housing, and an operating temperature of -25°C to 70°C.
Engineering Specifications
11 of 13 fields available · 85%Verified specifications8 of 11 verified specifications with source evidence
Verification date not recordedView source document
Sensor TypeInductiveVerified · High · Page 1
Sensing MethodNot specified
Sensing Distance30.0 mm
Output TypePNPVerified · High · Page 1
Supply Voltage10-58VVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled voltage with V unit
Excerpt: “10…58 V DC”
Extracted Sep 6, 2026View source
IP RatingIP65, IP67, IP69KVerified · High · Page 1
Manufacturer datasheetHighPage 1
Evidence: labeled ingress-protection context
Excerpt: “IP65, IP67, IP69K”
Extracted Sep 6, 2026View source
Housing MaterialNickel Plated BrassVerified · High · Page 1
Housing TypeM30
Operating Temperature-25°C to 70°C
Switching Frequency500 HzVerified · High · Page 1
Response Time0.6 msVerified · High · Page 1
Current Consumption10 mAVerified · High · Page 1
AccuracyNot specified
Where to Buy
Best Price
Mouser
$116.50Availability unknown
Verify current stock at the retailer before ordering.
All retailer offers (2)
Can’t find the configuration or quantity you need? Request a sensor.
